I will design custom pcb layout and schematic for your prototype
PCB Design
I love to help design circuits boards at an affordable price. No matter the size or complexity. In constant cycle of self-improvement to provide better services for all.
About this Gig
Looking for someone to turn your schematics into production-ready PCBs? I provide clean, reliable PCB design, compact layout optimization, and manufacturing packages.
Whether you need a space-constrained board, a quick layout adjustment, or a multi-layer embedded system, I make sure every design passes strict Design Rule Checks (DRC) so your board fabricates without issues.
What I Deliver:

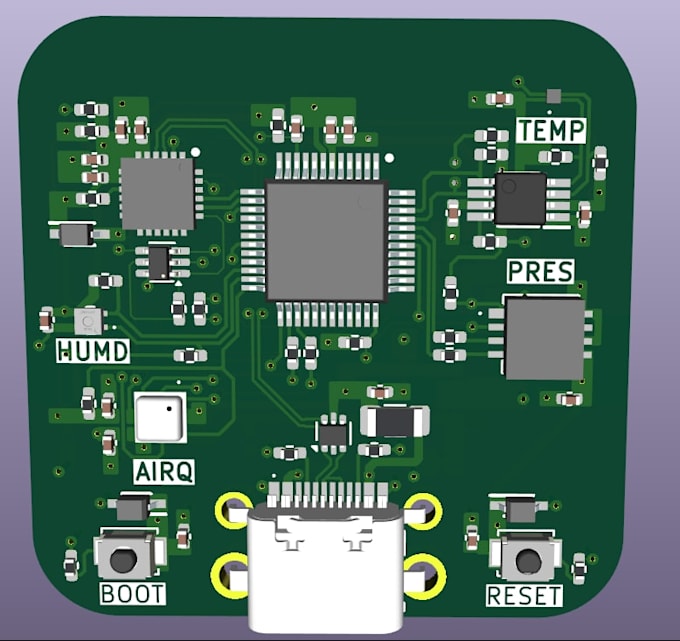

- Compact, high-density layout design optimized for small enclosures
- Production-ready Gerber and NC Drill files
- Formatted BOM and Pick-and-Place (CPL) files for JLCPCB and PCBWay
- Schematic and PCB PDFs
- 3D STEP models for enclosure design
- Native KiCad source files and LTspice simulation files (if required)
Packages:
- Basic ($15): Simple layout or fix up to 25 components (1-2 layers).
- Standard ($50): Medium complexity boards up to 75 components (2-4 layers).
- Premium ($150): Complex, high-density designs up to 150 components (4-6+ layers).
Please message me before ordering to confirm your schematic and requirements.
My Portfolio
FAQ
What files do I need to provide before ordering?
Please provide your schematic (PDF, KiCad, or image), design constraints (board size, shape, enclosure requirements), and any specific component preferences or datasheets.
Which EDA software do you use?
I work primarily with KiCad for PCB layout and LTspice for circuit simulation. You will receive native KiCad files upon completion.
Can you design compact or high-density boards?
Yes, I specialize in tight-tolerance, compact layouts and multi-layer boards optimized for small enclosures.
Are the files ready for fabrication services like JLCPCB or PCBWay?
Absolutely. I provide production-ready Gerbers, NC Drill files, BOMs, and Pick-and-Place (CPL) files formatted specifically for standard fabrication and assembly houses.
What if my manufacturer finds an issue during DRC/DFM review?
If your fabricator raises any Design for Manufacture (DFM) flags or layout queries during production, I will update and fix the layout files free of charge to get your board manufactured smoothly.
Can you simulate or verify my circuit before laying out the PCB?
Yes, if you have analog or power circuit sections that require validation, I can run functional simulations in LTspice prior to completing the PCB layout.
What if my project has more components than the listed packages?
You can easily add extra components using the gig add-ons during checkout ($5 per 10 additional components), or feel free to message me directly for a custom offer.
