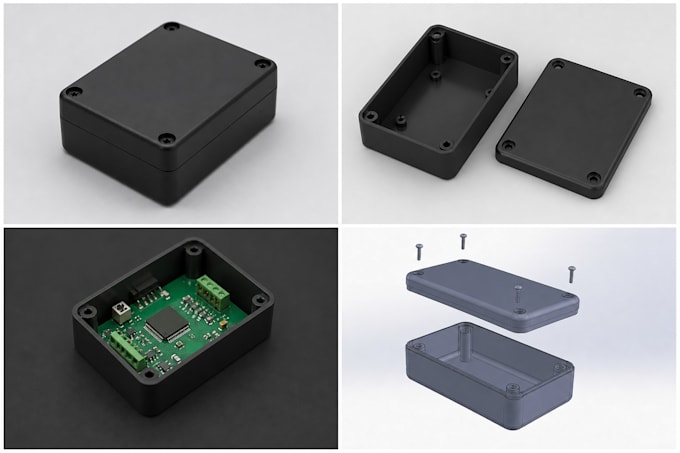

I will electronics enclosure pcb board, custom box case housing 3d model and stl files

No problem! If you don't have a 3D CAD model of your circuit board, you can provide 2D Gerber/DXF files, dimensioned schematics, or accurate caliper measurements with clear photos. I will model a precise virtual PCB mockup first to ensure the enclosure fits your board perfectly.

I apply industry-standard clearance offsets (typically 0.3mm–0.6mm depending on the manufacturing method) around all USB-C, HDMI, power jacks, antennas, and LED ports. This accounts for soldering variations and prevents port blockage or difficult cable plug-ins.

Yes! I can engineer functional cantilever or annular snap-fit joints with calculated deflection ratios. This allows the top and bottom covers to click securely together by hand without cracking or losing grip over repeated openings.

For mass production, I apply strict DFM (Design for Manufacturing) standards: Consistent uniform wall thickness to eliminate sink marks Appropriate draft angles (1° to 3°) for smooth mold ejection Strategic internal ribs and gussets for structural rigidity without adding excess weight

Absolutely. I design enclosures for IP65, IP66, and IP67 environmental ratings by incorporating continuous tongue-and-groove gasket channels, custom O-ring grooves, waterproof cable gland entries, and balanced screw-down patterns for even gasket compression.

Engineering prototypes often need slight real-world tolerance tweaks. All orders include design revisions. If you 3D print the case and find that a connector needs 0.3mm more clearance or a standoff needs a slight height adjustment, simply let me know and I will update your CAD files promptly!
