I will do mechanical 3d detail modeling and 2d drawings drafting
F. Rahman
About this gig

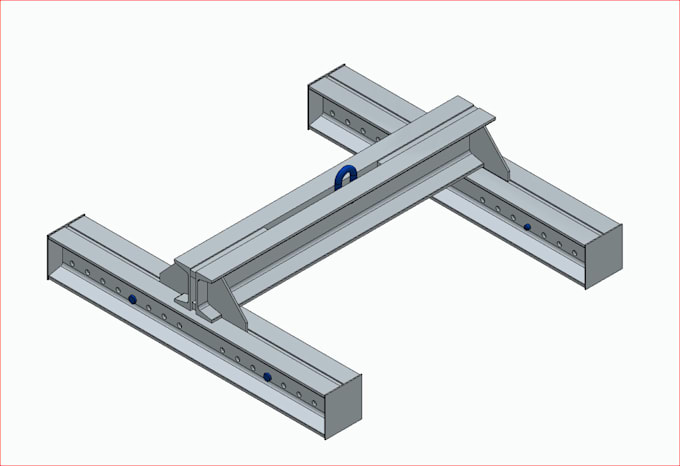

I offer 3D detail modeling and 2d manufacturing drafts for any mechanical structure. The following hierarchy is maintained in the top level assembly.
- Machining subassembly
- Secondary welding (Weldments) subassembly
- Primary welding (Weldment) subassembly
The loose parts (bolts, nuts, pins, locking plates, shafts, cylinders, bushes, shim plates etc)
are placed in the top level assembly (depends on the client requirements).
Parametric modeling approach is used in the modeling.
The following are the drafts that are offered.
- Top level assembly drawing
- Machining drawing
- Weldment drawings
- Paint drawings
- Mono drawings
Delivery style preference
Please inform the freelancer of any preferences or concerns regarding the use of AI tools in the completion and/or delivery of your order.
Get to know F. Rahman
F. Rahman
Mechanical Design Engineer
- FromPakistan
- Member sinceJan 2022
- Avg. response time1 hour
- Last delivery2 months
Languages
English
I am a Professional Mechanical Engineer with 5 years of experience in structural design and analysis. I worked on offshore heavy duty lifting and handling equipment and cranes. I have also worked on equipment used in oil and gas industry such as chillers, Boilers, pressure vessels, silos, and heat exchangers. I offer Advance FEM modeling, 3D detailed engineering, Construction drawing and analytical calculations. In FEM modeling I offer Static Analysis, Linear Dynamic Analysis, Fatigue Analysis, Thermal Analysis, Nonlinear analysis, and structural buckling analysis.
