I will design technical exploded views, assembly manuals
FRANKO SHELVIN
About this gig
Need a clear exploded view or assembly manual for your product? I will create professional, easy-to-follow technical illustrations.
I specialize in exploded views, step-by-step assembly instructions, and parts catalogs for furniture, hardware, and consumer products.
What you get:

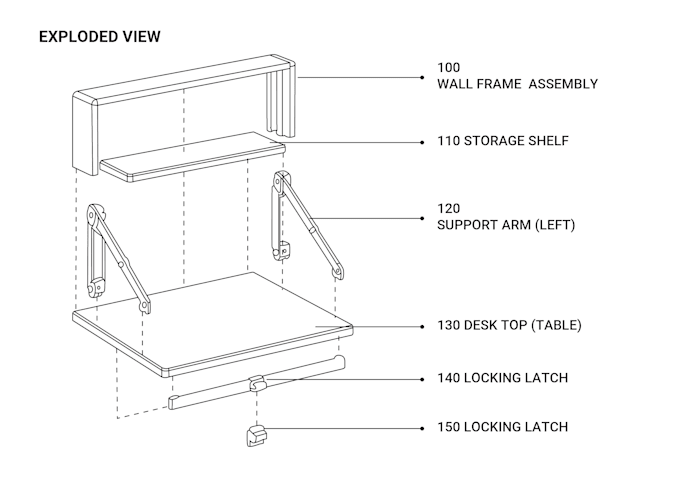

- Exploded views showing exactly how parts fit together
- Clear assembly steps with motion arrows (if needed)
- Professional parts lists and callout numbering
- Editable source files (AI/SVG/PDF) + high-res PNGs
How I work:
- You send your product sketches, photos, or CAD files.
- I create the breakdown and draft the steps for your review.
- I deliver professional, print-ready files.
Perfect for IKEA-style manuals, Kickstarter pitches, or patent support.
Click "Contact Me" to start your assembly guide today!
