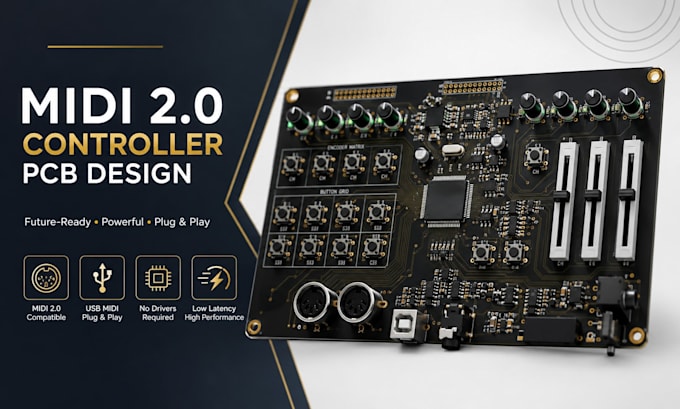

I will design midi 2.0 controller pcb midi 2.0 compatible hardware usb midi no driver install ready
I am a PCB design expert specializing in custom MIDI 2.0 compatible hardware. While most sellers offer generic PCB layouts, I design boards built from the ground up for the MIDI 2.0 protocol giving you higher resolution control, polyphonic expression and full bidirectional communication that the old MIDI 1.0 standard simply cannot do.
WHAT YOU GET IN EVERY ORDER:
- Full schematic design (PDF + KiCad source)
- 2-layer PCB layout optimized for clean power rails and zero audio interference
- JLCPCB-ready Gerber files + drill files
- Complete Bill of Materials (BOM) with exact part numbers
- Pick & Place file for SMD assembly
- 3D PCB render (top and bottom view)
- USB MIDI 2.0 class compliant firmware (no driver install on any OS)
- RP2040 or STM32-based design
POPULAR CONFIGURATIONS I BUILD:

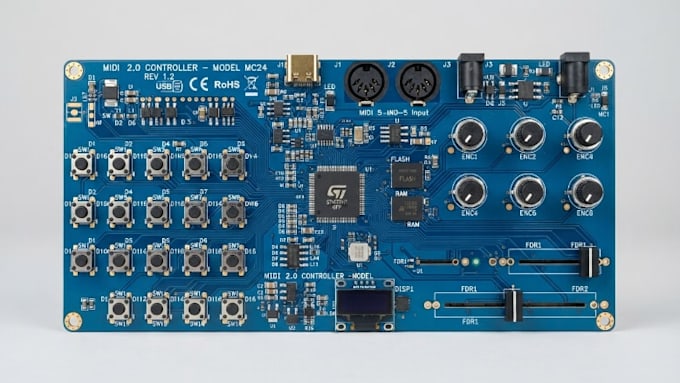

- 16-pad + 8 encoder + 4 fader MIDI 2.0 controller
- DAW control surface with motorized faders
- Compact 8-pad beat controller with RGB feedback
- Custom layout you tell me what you need
Message me BEFORE ordering so I can confirm your exact requirements and give you the fastest possible delivery.
File format:
Gerber
•
STEP
•
SCH
•
•
ODB
Software:
Altium Designer
•
Eagle CAD
•
EasyEDA
•
KiCad
•
Proteus
•
AutoCAD
Interface:
UART
•
USB
•
SPI
•
I2C
•
Wi-Fi
•
BT
•
GSM/GPRS
•
Ethernet
Other Electronics Engineering Services I Offer
FAQ
Will this controller work without installing drivers on Windows 10/11?
Yes 100%. My design uses USB MIDI 2.0 class compliant implementation via TinyUSB on the RP2040. Windows, Mac, and Linux all recognize it instantly. No driver download, no setup plug in and it works.
What is the difference between MIDI 1.0 and MIDI 2.0 and do I need it?
MIDI 2.0 gives you 32-bit resolution instead of 7 bit meaning smoother knob movement, more expressive velocity, and per-note pitch bend. If you use modern DAWs or synthesizers from Roland, Native Instruments, or Arturia, MIDI 2.0 makes a real difference. I can also build MIDI 1.0 if that is what y
What DAWs will my controller work with?
All of them Ableton Live, FL Studio, Logic Pro, Pro Tools, Reaper, Cubase, Reason, GarageBand. Any DAW that accepts standard USB MIDI will recognize your controller with zero configuration.
Can I order the PCB myself after I receive the files?
Yes all Gerber files I deliver are pre checked and ready to upload directly to JLCPCB, PCBWay, or OSH Park. I include exact ordering instructions so you get the right specifications first time.
Can you design a completely custom layout that does not exist yet?
Absolutely that is my specialty. Send me a rough sketch, a list of controls you need, or just describe what you want to do musically and I will design the right hardware for it. Message me before ordering to discuss.
