I will design plastic electronics enclosure cad with draft angles and wall thickness
Micheal S.
About this gig
Hi, Im Lucas, a 3D CAD designer specializing in plastic electronics enclosures with correct draft angles and uniform wall thickness. I create clean, manufacturing friendly models for 3D printing, prototyping, and injection molding.
What I Offer:

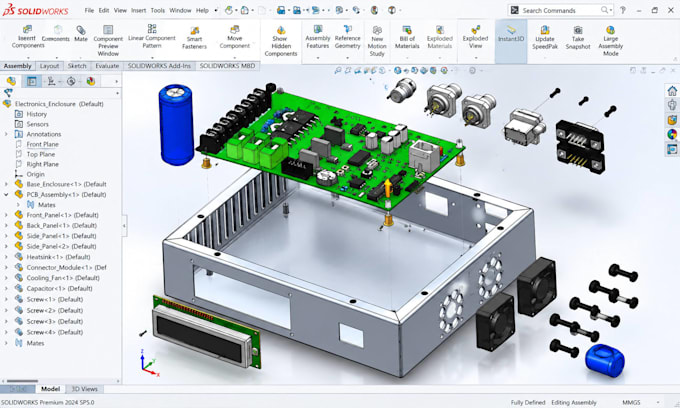

Plastic enclosure CAD (lid/base or single body) for PCB electronics
DFM essentials: draft angles, wall thickness, ribs, fillets, parting friendly shapes
PCB fit: standoffs, clearance checks, connector cutouts, vents, LED/button windows
Assembly features: screw bosses, alignment pins, snap fits, insert seats (as needed)
Production ready exports for supplier/toolmaker handoff
Software I Use:
SolidWorks
Fusion 360
Creo
AutoCAD
File Formats Delivered:
STEP / IGES (manufacturing ready)
STL (3D print preview)
Native CAD (on request)
Deliverables Include:
3D CAD model(s) of the enclosure
DFM ready geometry (draft + wall thickness applied)
2D drawings (if included/required)
Revisions as per package
What I Need From You:
PCB STEP/outline + mounting holes, connector locations, max component height, target material/process, and reference images.
Note: Full mold design (gates, cooling, ejectors) is not included unless requested.
