I will convert 3d scans, stl mesh, step files and drawings into editable mechanical cad
Thyson
About this gig
I'm Thyson, a mechanical CAD designer who rebuilds existing parts as clean, editable 3D models. I work from measurements, engineering drawings, reference photos, STL meshes, and suitable 3D scan data. I can help you recreate mechanical parts from scan data, drawings, measurements, sketches, or reference images, depending on the information available.
WHAT I CAN DO FOR YOU:

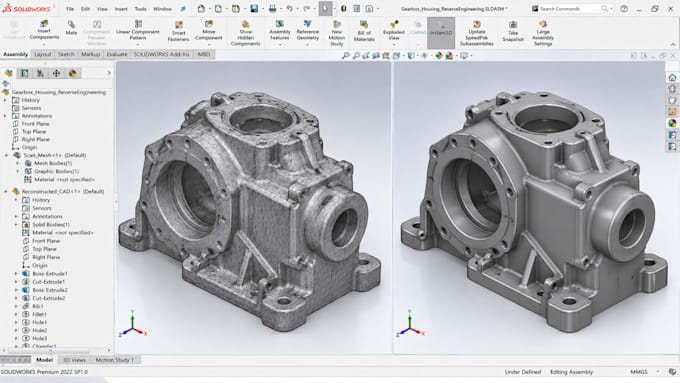

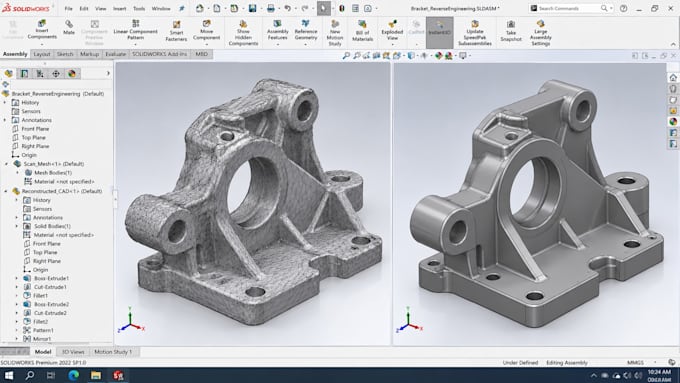

- 3D Scan to CAD conversion
- STL Mesh to STEP conversion
- Mesh to Solid CAD reconstruction
- Mechanical Part Reconstruction
- Reverse Engineering CAD
- Editable and Parametric CAD Modeling
- Existing part modification and redesign
- Technical drawings and CAD file preparation
MY WORKING PROCESS:
- Review your scan, mesh, drawing, measurements, or reference images.
- Confirm the part details, important dimensions, and required output formats.
- Reconstruct the geometry based on the available information.
- Prepare and deliver the agreed CAD files.
Please note that the final accuracy depends on the quality of the source data, available measurements and complexity of the part.
Let's turn your existing part or scan data into a useful CAD model for your next stage of development.
Delivery style preference
Please inform the freelancer of any preferences or concerns regarding the use of AI tools in the completion and/or delivery of your order.
Get to know Thyson
Thyson
Robotic Gripper Design, Robot Arm CAD, Mechanical CAD, SolidWorks
- FromUnited States
- Member sinceOct 2026
- Avg. response time1 hour
Languages
English, French, German, Portuguese, Spanish, Italian
Hello, I'm Thyson, I help turn robotics ideas into practical CAD designs for prototyping and development. I do 3D Printable Robot Parts, Robot Arm CAD Design, Robotic Servo Mount Design, SolidWorks Robot Assembly, 3D Printed Robot Enclosure, Robot Joint CAD Design, Robotic Gripper Assembly, 2 Finger Robotic Gripper Design, Arduino Robot Chassis Design, and 3D Printable Robotic Brackets. I focus on accurate dimensions, part fit, clean assemblies, and files suited to your project needs. Share your sketches, references, and we can discuss the approach, deliverables, and next steps with focus.
FAQ
Can you reconstruct complex parts or complete assemblies?
Yes, subject to reviewing the scope and reference files. Complex parts, multiple components, missing geometry, and large scan datasets may require a custom quote and a longer delivery time.
Which files will I receive?
Depending on the package, I can provide STEP or STL exports, editable native CAD files, and agreed technical drawings. Please specify your preferred software and output formats before ordering.
Will the reconstructed part match the original dimensions exactly?
Accuracy depends on the available measurements, scan resolution, reference quality, and tolerances. I can work to agreed dimensions, but exact fit cannot be guaranteed without sufficient data and appropriate verification.
What 3D scan file formats can you accept?
Please send your available scan or mesh file and tell me which software produced it, if known. I'll review whether the format and geometry are suitable before confirming the order.
Can you recreate a mechanical part from photos or drawings?
Yes. I can use reference photos, sketches, engineering drawings, and measurements to reconstruct a mechanical part. Clear dimensions and multiple views help improve accuracy.
