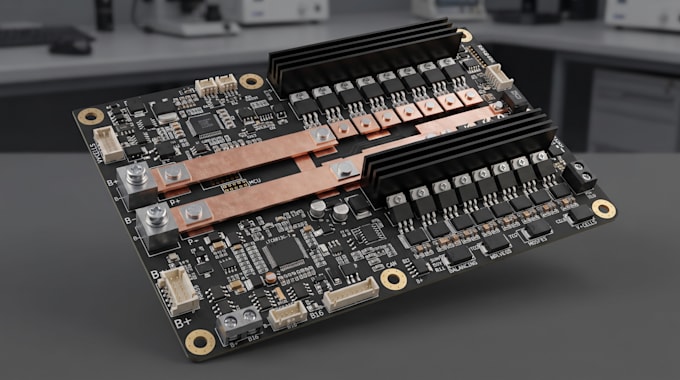

I will design lithium ion battery bms pcb and battery management system
About this Gig
I can develop custom BMS PCB designs for lithium-ion and lithium-based battery packs, including power tools, robotics, electric vehicles, portable electronics, energy storage systems, drones, industrial equipment, and other battery-powered applications.
The BMS can be designed around your required cell configuration, charging method, continuous and peak current, protection requirements, communication interfaces, and available space.
BMS PCB Design Services:
- Lithium-ion battery BMS PCB design
- 1S, 2S, 3S, 4S and multi cell battery management systems
- Custom battery protection circuits
- Cell voltage monitoring
- Passive cell balancing
- Overcharge and overdischarge protection
- Overcurrent and short circuit protection
- Temperature monitoring and protection
- Battery charging and power management
- Battery state monitoring
- CAN, UART, I2C and RS485 communication
- Custom battery pack electronics
- Compact and space-constrained BMS boards
- Prototype and production-ready PCB designs
- Complete BMS schematic
- PCB layout and routing
- Component selection
Contact me before placing an order so we can confirm the technical requirements and select the appropriate package for your battery m
FAQ
Can you design a custom Lithium-Ion BMS PCB?
Yes, I can design a custom BMS PCB based on your cell configuration, voltage, current, charging requirements, protection features, and application.
What battery configurations can you design?
I can work with various multi-cell lithium battery configurations, including 1S, 2S, 3S, 4S, and higher-series battery packs, depending on the required BMS architecture.
Can you include cell balancing in the BMS?
Yes, I can incorporate cell balancing and cell voltage monitoring according to your battery specifications and balancing requirements.
What protection features can you include?
The BMS can include overcharge, over-discharge, overcurrent, short-circuit, over-temperature, and other required battery protection functions.
Can you design a BMS for high-current battery applications?
Yes, I can design BMS electronics for applications requiring higher continuous or peak current, provided the required electrical specifications are supplied.
Can you add temperature monitoring?
Yes, temperature sensing and protection can be incorporated using appropriate temperature sensors and monitoring circuitry.
