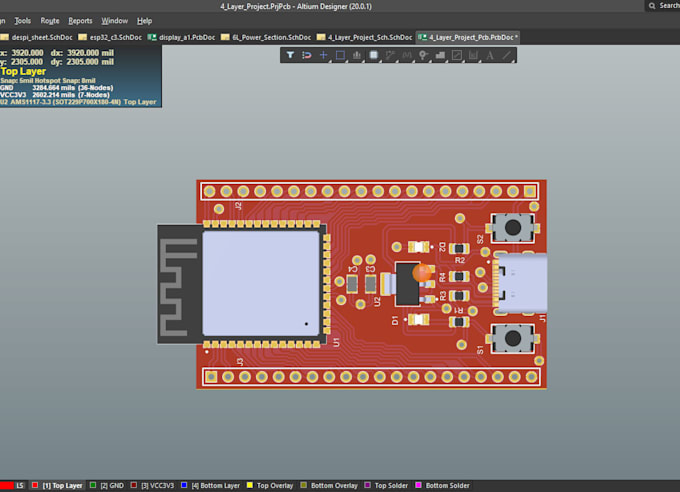

I will design professional 2 layer and 4 layer pcb layouts in altium
About this Gig
Looking for a Professional PCB Designer using Altium Designer? You are in the right place!
I specialize in transforming schematics into high-quality, production-ready circuit board layouts. From simple 2-layer breakouts to complex 4-layer and multi-layer high-speed configurations, I ensure optimized design for manufacturing (DFM/DFA).
️
My Technical Expertise:
- Multi-Layer Layouts: Expert 2-Layer, 4-Layer.
- High-Speed/RF Design: Differential pairs, impedance matching, ground planes.
- Component Footprints: Accurate creation mapped to standard tolerances.
- 3D Modeling: Flawless 3D STEP models for mechanical enclosure checks.
Deliverables You Will Receive:
- Fabrication Files: Gerber (RS-274X/X2) + NC Drill files for JLCPCB/PCBWay.
- BOM: Bill of Materials with MPN for easy component sourcing.
- Documentation: Assembly drawings, PDF schematics, Pick & Place files.
- Source Files: Native Altium files (.SchDoc/.PcbDoc) (Premium Only).
Optimized for seamless production. Please contact me before ordering to discuss your project requirements. Let's build your hardware!
File format:
Gerber
•
STEP
•
SCH
•
•
ODB
Software:
Altium Designer
•
KiCad
•
CircuitMaker
Interface:
UART
•
USB
•
SPI
•
I2C
•
Wi-Fi
•
BLE
•
BT
•
Ethernet
My Portfolio
FAQ
What software do you use for PCB design?
I primarily use Altium Designer, which is the industry standard for professional PCB layout, high-speed routing, and 3D modeling.
Do you ship physical PCB prototypes to my location?
No, I only provide digital hardware design services. You will receive all the necessary production-ready manufacturing files (Gerbers, BOM, Drill files), which you can easily upload to any manufacturer like JLCPCB or PCBWay to print and assemble your board.
What do you need from me to start the design?
To get started, I need your circuit schematic, component datasheets (if any specialized ICs are used), board shape/size constraints, and any specific component placement requirements you have.
Are the source files included in all packages?
Native Altium source files (.SchDoc and .PcbDoc) are fully included in the Premium Package. For Basic and Standard packages, you will receive all fabrication outputs, but the source files can be added as a gig extra.
What if I need to make small changes to the design after you deliver the files?
Don't worry at all! Every package includes a set number of revisions. If you need minor component shifts, track adjustments, or minor footprint corrections to match your enclosure, I will happily update the design for you within the revision limit.
