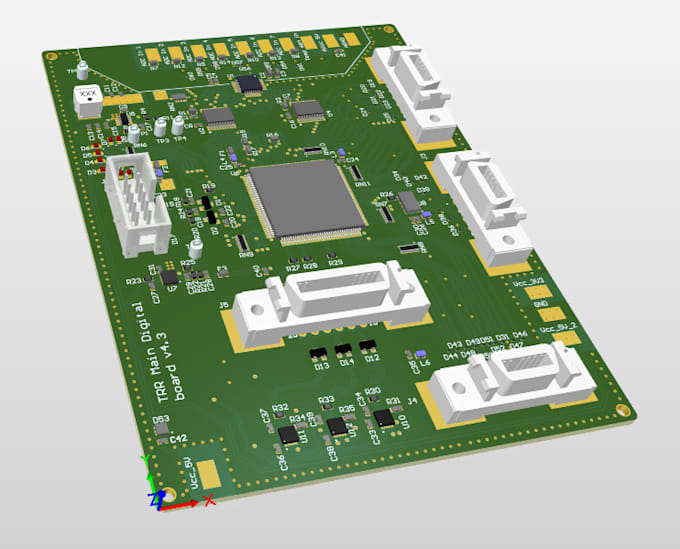

I will design and analyze mixed signal, multilayer pcbs

I have 7 years experience of PCB designing. I have experience of designing Analog, Digital, RF microwave and Mixed-signal PCBs of differing sizes and number of layers. I follow professional workflow for designing PCBs that ensures the Signal / Power Integrity, compliance to EMC/EMI criteria while also guaranteeing that the design is Manufacturable (DFM), Assemblable (DFA) and Testable (DFT).

Please contact me with a circuit diagram of the circuit and specifications, features, standards that you want the PCB to comply to.

I can design:

*Circuits*

• Analog
• Digital
• RF/Microwave
• Mixed-Signal

*PCB Types*

• Rigid
• Flex
• Rigid -Flex

*Features*

• Any size, no. of layers
• IPC standards compliance

*Interface Protocols*

• SPI
• I2C
• UART
• RS232
• LVDS
• RS422
• RS485
• CAN
• USB
• HDMI
• PCIe

At completion of the job, I will provide

• Gerber files
• PCB Design project files
• Bill of Materials
• Assembly Files (Pick and Place, Test point, Assembly drawing)
• SI/PI report (if requested)
