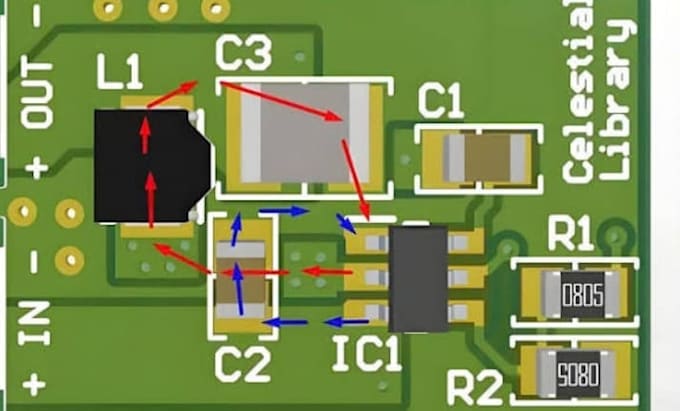

I will design custom automotive led driver and sequential turn signal pcb layout
Custom PCB Embedded Hardware Engineer Altium, KiCad EasyEDA
Hey! I’m a PCB layout & hardware design engineer expert in high speed, compact, and production ready circuit board designs. Whether you need a CAN Bus module, an automotive LED driver, or custom contr...
About this Gig
Upgrading custom car headlights, taillights, or interior ambient lighting? Standard off the shelf boards often fail due to heat buildup or voltage spikes. I design custom automotive LED driver PCBs and sequential light controllers related to your exact enclosure size.
Whether you need a simple constant current buck driver, an Arduino/ESP32 based sequential flasher, or an aluminum core (MCPCB) layout for high brightness LEDs, I deliver clean, production ready files.
What you will get;
Custom schematic & 2 to 4 layer PCB layout
Gerber, NC Drill, and fabrication drawings
LCSC/DigiKey BOM with exact part numbers
Pick & Place (CPL) files for 1-click JLCPCB / PCBWay assembly
Thermal relief & TVS transient voltage protection
3D STEP & preview renderings
Tools used; KiCad, EasyEDA, or Altium Designer.
Automotive electrical systems are noisy I design with built in reverse polarity and surge protection so your LEDs don't burn out. Send me your circuit requirements, schematic sketch, or board dimensions, and let's bring your custom automotive lighting project to life!
FAQ
Will this layout fit inside my custom headlight/taillight housing?
Yes! You can send me a 2D DXF outline, precise hand-drawn caliper measurements, or 3D STEP file of your housing. I will design the PCB board shape to fit your exact enclosure limits.
Can you design aluminum-core PCBs (MCPCB) for high-power LEDs?
Absolutely. High-brightness automotive LEDs produce significant heat. I can lay out the circuit on a Metal Core PCB (MCPCB) or implement thermal via arrays on standard FR-4 to keep temperatures down.
How do you protect the LEDs from voltage spikes when the engine starts?
Car alternators produce load dump voltage transients up to 40V+. I integrate automotive-grade Transient Voltage Suppressor (TVS) diodes, reverse-polarity protection, and buck regulators into every design.
Can you add custom logos, text, or pin labels to the board silkscreen?
Yes, at no extra charge! I can place terminal labels (+12V, GND, SIG), version numbers, your brand name, or custom logo directly onto the top or bottom silkscreen layer.
Will this layout fit inside my custom headlight/taillight housing?
Yes! You can send me a 2D DXF outline, precise hand-drawn caliper measurements, or 3D STEP file of your housing. I will design the PCB board shape to fit your exact enclosure limits.
