I will design electrical drawing, load calculation, and single line dlagram
Licensed Electrical Engineer, AutoCAD, SLD, MEP, IEC, Precision Drawings
Professional Electrical Engineer specializing in electrical drawings, single line diagrams (SLD), load calculations, and MEP electrical design for residential, commercial, and industrial projects.
I d...
About this Gig
Struggling to find a reliable electrical engineer who delivers accurate, code compliant drawings on time? You've found your expert.
I am a professional Electrical Engineer specializing in building electrical design and MEP documentation for residential, commercial, and industrial projects.
- Electrical lighting layout plan
- Power layout & socket outlet plan

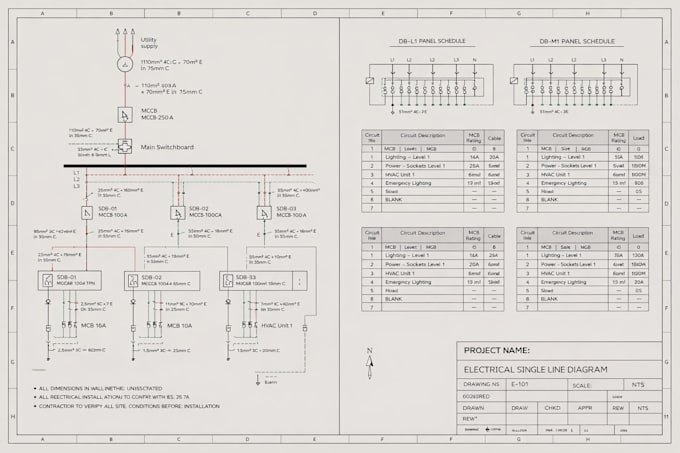

- Single line diagram (SLD/riser diagram)
- Load calculation & load schedule
- Distribution board (DB) schedule
- Cable sizing & circuit design
- Earthing/grounding layout
- AutoCAD electrical drawings
All designs comply with IEC, BS 7671, and NEC standards. Deliverables are construction ready
Deliverables: AutoCAD (.dwg), PDF, or both your choice.
Whether it's a house, apartment, office, or warehouse send me your floor plan and I'll handle the rest. Fast turnaround, unlimited revisions on the agreed scope, and clear communication throughout.
Message me before ordering so I can give you a precise quote and timeline. Let's get your project done right.
Project scale:
Building
Building type:
Residential
•
Commercial
•
Industrial
Delivery style preference
Please inform the freelancer of any preferences or concerns regarding the use of AI tools in the completion and/or delivery of your order.
FAQ
What file do I need to provide for you to start?
A floor plan is all I need to begin AutoCAD (.dwg), PDF, or even a hand sketched scan. I'll take it from there and produce professional electrical drawings.
Do your electrical drawings comply with international standards?
es. All designs are prepared in compliance with IEC 60364, BS 7671 (UK wiring regulations), and NEC standards. If your project is in a specific region, let me know and I'll align to the applicable code.
What is included in the single line diagram (SLD)?
The SLD covers the complete power distribution from the main switch board (MSB) down to all distribution boards (DBs), showing cable sizes, breaker ratings, protection devices, and bus bar details.
Can you handle large commercial or industrial projects?
Yes. I've handled projects ranging from single apartments to multi-storey commercial buildings and industrial facilities. Message me with your project scope and I'll give you a custom quote.
Do you provide load calculations and DB schedules separately?
Yes. Load calculations and DB schedules can be ordered as standalone services or as part of a full electrical design package. Message me to discuss your specific need.
