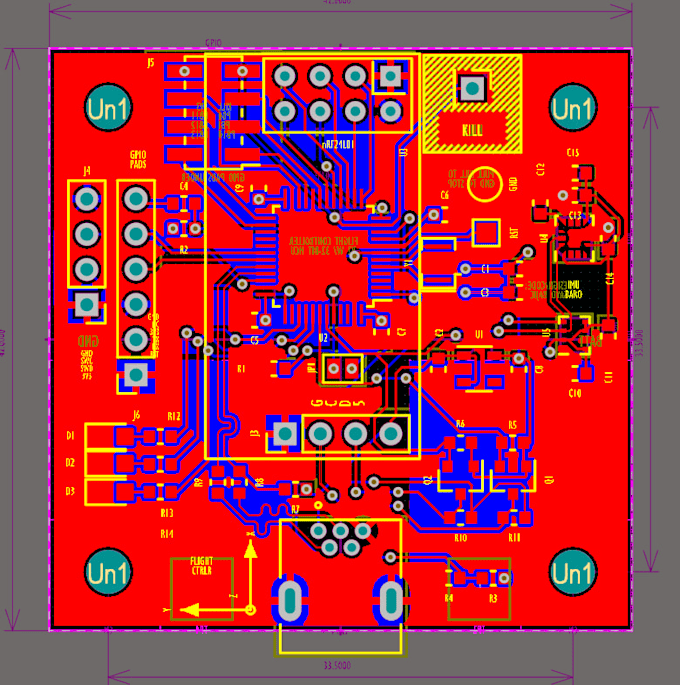

I will do high performance pcb layout and custom schematic design
About this Gig
Professional PCB Design & Layout Services
Need a manufacturing-ready PCB layout without noise or fabrication delays? From 2-layer boards to complex multilayer systems, I deliver industry-standard circuit design tailored to your needs.
What I Bring to Your Project:
Toolchains: Advanced mastery of Altium Designer and KiCad.
Hardware: Experience with STM32, Arduino, and ESP32.
Power Electronics: Buck/boost, TRIAC control, high-current, and isolation.
Signal Integrity: Clean routing, impedance matching, noise immunity (SPI, I2C, UART, USB, CAN Bus).
Every Delivery Includes (Zero Hidden Costs):
Fabrication Files: Production-ready Gerbers, NC Drill, & Pick-and-Place (JLCPCB/PCBWay).
BOM: Structured part list with supplier links (LCSC/DigiKey).
3D STEP File: To guarantee a perfect enclosure fit.
Source Files: 100% native editable project files.
Why Work With Me? I dont just connect lines on a screen. Every layout undergoes strict DFM (Design for Manufacturability) checks to ensure clean assembly on the first try.
My Portfolio
Other Electronics Engineering Services I Offer
FAQ
What software tools do you use for design?
I work with industry-standard professional toolchains, primarily Altium Designer and KiCad, depending on your specific project requirements or organizational preferences.
What specific deliverables are included in the final handoff?
Every order delivers full manufacturing-ready Gerber files (RS-274X or X2), NC Drill files, Pick-and-Place data, a detailed Bill of Materials (BOM) with active supplier links, a 3D STEP file for mechanical enclosure verification, and the 100% native source files.
Can you design a board if I only have a rough sketch or a component list?
Absolutely. If you do not have a completed schematic, you can provide a functional block diagram, a hand-drawn circuit sketch, or a simple text list explaining what the board needs to accomplish. I will build the schematic from scratch before starting the layout.
Do you run checks to make sure the board can be manufactured cleanly?
Yes. Every single layout I produce undergoes a strict DFM (Design for Manufacturability) analysis tailored to your preferred fabrication house (such as JLCPCB or PCBWay) to guarantee zero clearance errors or automated assembly complications.
Can you design PCBs for IoT, ESP32, STM32, or Arduino-based projects?
Yes, absolutely. I specialize in embedded systems and IoT hardware including ESP32, STM32, Arduino, and similar microcontroller-based boards with interfaces like I2C, SPI, UART, USB, Wi-Fi, and BLE.
